5-Axis Stone & Bridge Saw CNC Controller
Fast, accurate slab cutting, miters, and bevels with live 3D preview on true 5-axis (X-Y-Z + C table + A tilt).
- Axes
- 5-Axis
- Machine class
- Five-axis CNC stone bridge saws and disk-cutting machines
- Input
- DXF and standard G-code (e.g., ArtCAM / PowerMill posts)
01
Interface profile
Introduction
With CAM-Pro and compatible Radonix controller hardware, the XYZCA CNC controller interface coordinates X-Y-Z motion, C rotation and A blade tilt for five-axis stone bridge saws.
- Who uses it
- Stone fabricators, countertop shops, monument makers, tile & architectural stone.
- Works with
- 5-axis bridge saws using a diamond disk/blade (linear X-Y-Z + rotary C and tilting A).
- Compatible controllers
- PC Smart 6APC-Pro LAN 6A5-Axis Configuration Review
- Supported files
- DXF and standard G-code (e.g., ArtCAM / PowerMill posts)
02
Machine architecture
Machine & Kinematics
Machine & Kinematics
Axes: X, Y, Z linear; C table rotation; A blade tilt (0–90°) for miters/bevels.
Operations: Straight cuts, step-cuts, angle cuts, arcs/segments, slotting & trimming.
3D work envelope with homing, soft limits, and Safe-Z park.
Teach-in points: build cut lists from on-table points with Add Point.
Control & I/O
Smooth step/dir motion with look-ahead; per-axis feed & step inputs on screen.
Mapped outputs for Spindle (saw motor), Coolant/Water, pump/bleed, beacons, alarms.
Safety interlocks: door/guard, pressure/flow OK, E-stop chain, over-travel.
Optional laser line/pointer support for quick edge alignment.
03
Software workflow
Software & Workflow
- 01Open DXF
or design in Landscape; send to the controller.
- 02A/C
Set origin, slab thickness, feeds/steps; apply A/C angles for miters/rotations.
- 03Add Point
Use Add Point to teach cut locations or adjust alignment (laser optional).
- 04Simulate / Dry-run
verify limits and sequence.
- 05Step 5
Run the job; the system manages step-cuts, coolant, and spindle/pump I/O.
- 06resume from last line
If interrupted, resume from last line; save the report for traceability.
04
Interface capabilities
Key Features of Radonix CNC Software
Software & Workflow

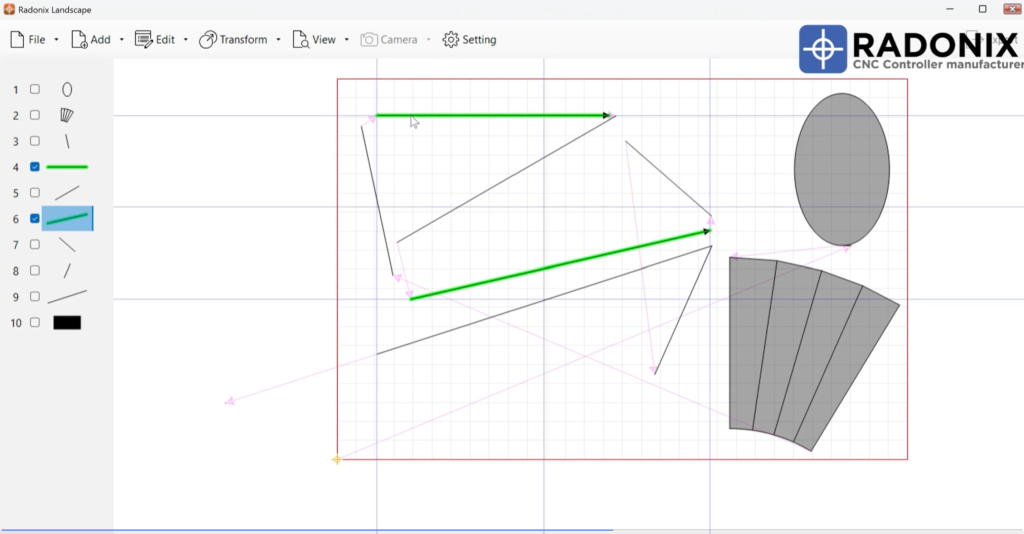

Import DXF, or sketch rectangles, circles, polygons in Landscape then export to run.
Per-segment A/C angles, feed (V), and step-cut depth; automatic multi-pass slicing.
3D preview of slab, tool and path; simulate or dry-run (outputs off).
Sheet/part align & rotate on table; set multiple reference points.
Resume from last G-code line after a stop or power loss (safe re-entry checks).
Job logging: time, length, miters, pauses/alarms; notes saved with the file.
Key Capabilities (at a glance)
5-axis linkage: X-Y-Z + C rotate + A tilt
DXF & Landscape workflow with teach-in Add Point
Step-cutting, miters/bevels, arcs/segments
3D view, dry-run, single-block step
Full interlocks, Safe-Z, automatic job reports
XYZCA stone-saw kinematics
Coordinates X, Y and Z linear motion with C-axis table rotation and A-axis blade tilt for true five-axis bridge-saw operation.
Miter and bevel cutting
Controls A-axis blade tilt and C-axis orientation for angled cuts, miters, bevels and compound stone profiles.
Step cutting and cut sequencing
Runs controlled multi-pass cuts with configurable depth steps, cut order and safe approach and retract moves.
Landscape workflow and slab alignment
Supports DXF and Landscape jobs with teach-in Add Point, sheet rotation or shift and optional laser-assisted alignment.
Coolant and water control
Coordinates pump, coolant or water flow, pressure-ready signals and cutting interlocks before and during blade operation.
Safe-Z and 3D verification
Provides 3D preview, dry run, single-block checking and Safe-Z motion to verify blade reach, tilt and clearances before cutting.
DXF restart and recovery
Supports DXF and standard G-code cut sequencing, restart from the last line and controlled safe re-entry after an interruption.
05
Technical reference
Typical Specifications
| Area | Spec |
|---|---|
| Axes | X, Y, Z, C, A (disk blade) |
| Modes | Straight cut, miter/bevel (A), table rotate (C), step-cut multi-pass |
| Files | DXF, Landscape jobs, standard G-code |
| Compensation | Lead-in/out, arc/segment handling, corner slow-down, kerf/offset |
| Alignment | Teach-in Add Point, sheet rotate/shift, optional laser pointer |
| Safety | Doors/guards, pressure/flow OK, pump ready, E-stop, SafeZ |
| Recovery | Restart from last G-code line, safe re-entry |
| Reporting | Time, cut length, bevels/angles, pauses/alarms, operator notes |
