Expanded six-axis CNC control
PC-Pro LAN 6A
PC-Pro LAN 6A is an open-loop, PC-based CNC controller for servo drives and stepper motors that accept pulse/direction signals. It controls six independent and interpolated axes through 100 Mbps LAN communication and provides expanded industrial I/O for complex machine architectures.
Six-axis high-I/O controller
6 axesInterpolated + independent
500,000Pulses per second
Pulse + DirectionMotion interface
32 / 32Digital inputs / outputs
Long-term confidence
Engineered for the machine lifecycle
Industrial control hardware is only as valuable as the support behind it. PC-Pro LAN 6A is backed by Radonix warranty, service and technical assistance.
Long-term continuity for machine builders and production teams.
Technical assistance when your machine and production require it.
Product media

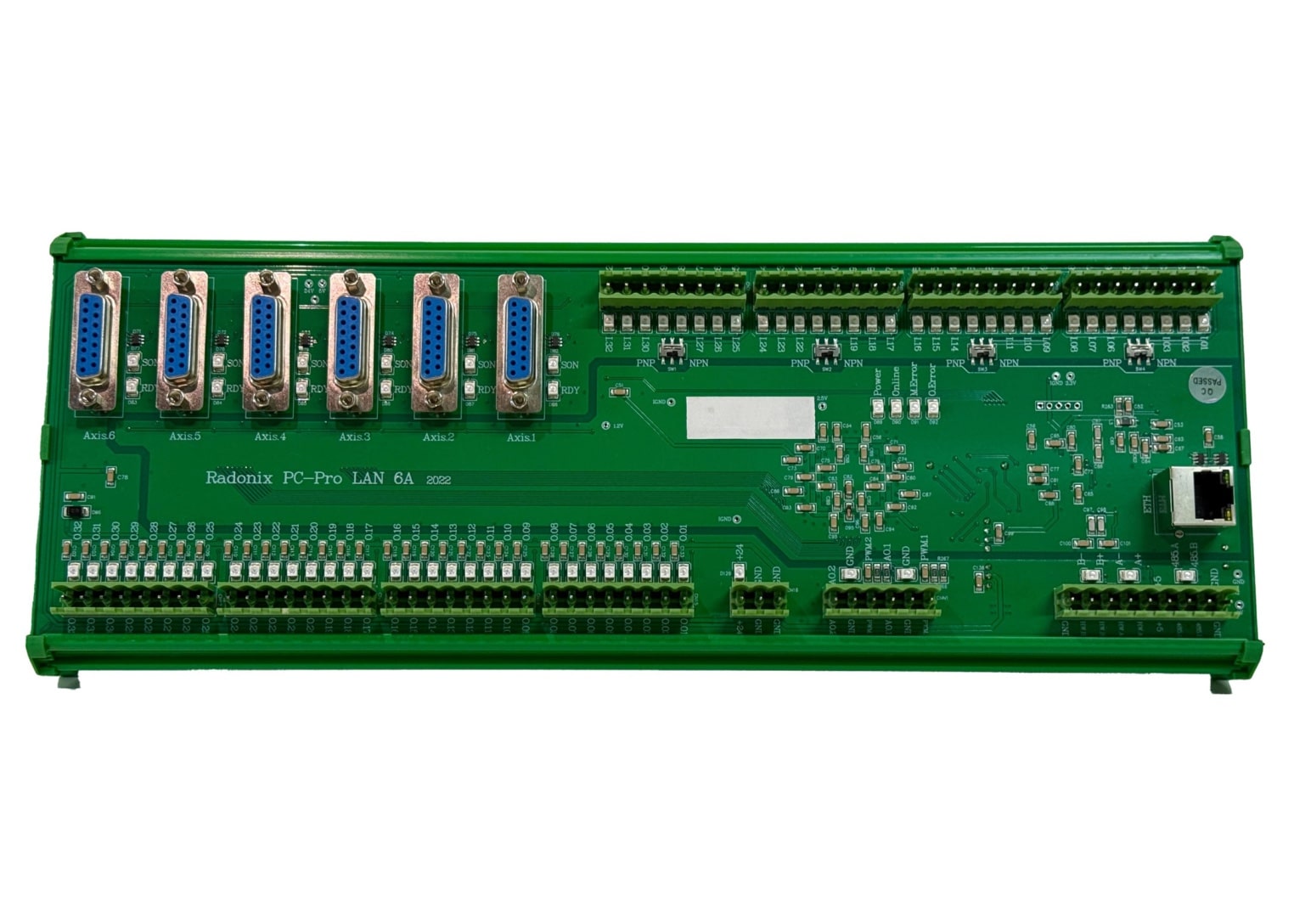

PC-Pro LAN 6A in detail
Review the controller hardware, connections and installation details in the original product media.
Industrial media

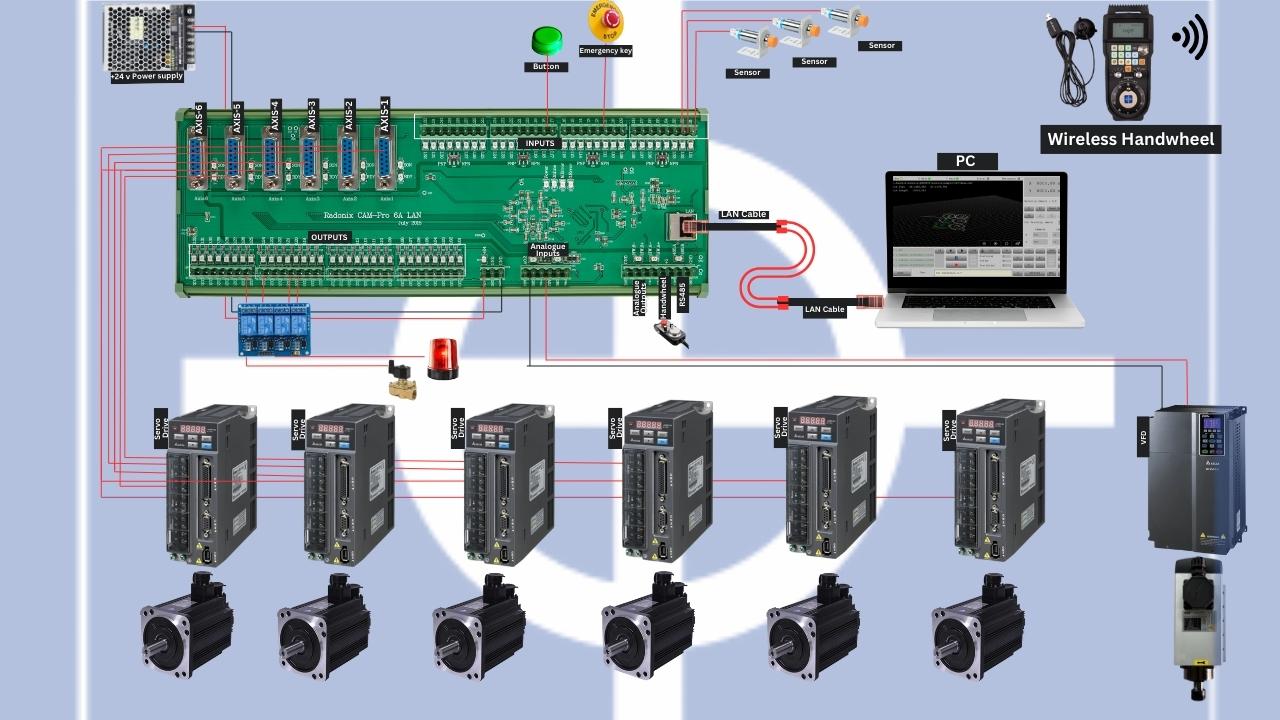

PC-Pro LAN 6A in the real world
Industrial media
PC-Pro LAN 6A in the electrical panel
Core capabilities
Control, connectivity and integration
Compare motion, I/O and integration capabilities for machine design and controller selection.
Axes
Six interpolated and independent axes provide precise motion control for complex applications.
Digital Outputs
Thirty-two protected NPN-compatible open-collector outputs support complex industrial loads.
Communication
100 Mbps LAN (TCP/IP) provides reliable communication at distances up to 50 metres.
Compatible Operating Systems
Supports Windows 7, 8, 10 and 11.
Analog Outputs
Two protected 0–10 V analog outputs support motor-speed control and analog devices.
Hardware Lock
Twenty-four adjustable time locks support controlled machine usage.
Digital Inputs
Thirty-two isolated PNP/NPN digital inputs support extensive sensors and machine devices.
Technical data
Specifications and configuration
Use the verified specifications below to evaluate electrical, motion and integration requirements.
| Feature | Specification |
|---|---|
| Acceleration Time | From 50 to 30,000 (mm/s²) |
| Analog Outputs (Protected) | 2 Units (0–10 Volts) |
| Axes | 6 Interpolated and Independent |
| Axis Pulse Speed | 500,000 pulses/sec |
| Axis Pulse Type | Pulse/Direction |
| Communication Distance | More than 20 metres with UTP / More than 50 metres with SFUTP |
| Communication Type | LAN at 100 Mbps (TCP/IP) |
| Control Type | Open-Loop Control |
| Digital Inputs (PNP/NPN, Isolated) | 32 Units |
| Digital Outputs | 32 open-collector outputs with short-circuit protection |
| Dimensions | 34 × 13 cm |
| Hardware Buffer Size | 2,000 Block FIFO |
| Hardware Lock | 24 Time Locks Adjustable with Internal Clock |
| Isolation Type | Optocoupler |
| Operating System | Windows 7, 8, 10, 11 |
| PC-Control Unit Data Exchange Time | 20 milliseconds |
| Power Consumption | 16–32 volts, 300 milliamps |
| PWM Outputs (Adjustable Frequency) | 2 Units (0–5 Volts) |
| Speed Profile | S-Curve |
| Supported Equipment | Joystick, Remote Control, Handwheel |
Confirm model-specific limits, signals and compatibility before final machine integration.
