Process-appropriate cutting
Knife cutting is suited to compatible flexible materials that require a mechanical cut without a heat-affected edge.
Textile & flexible-material CNC control
One control platform for cutting and sewingConfigure the process around the machine.
Application-specific CNC control for tangential knife cutters, conveyor cutting tables and programmable sewing machines. Radonix brings motion, job preparation, machine I/O and operator recovery into one production workflow.
COLD CUTNo heat-affected edge
XYCKnife orientation
ROLLConveyor workflows
VISIONRegistration option
01 Application overview
Control built for flexible-material production.
Radonix coordinates table motion, tangential tool orientation, vacuum or clamps, conveyor indexing and machine I/O. Dedicated XY, XYR and XYRS profiles extend the same application-led approach to programmable sewing machines.
Material handling
Coordinate vacuum zones, clamps or conveyor indexing according to the machine and production method.
Configured tooling
Configure compatible knife and auxiliary-tool functions around the fitted mechanics, actuators and I/O.
02 Control profiles
Built for the process,
not just the axes.
Choose an application profile for tangential knife cutting, roll-fed production or programmable sewing, then configure it around the real machine.

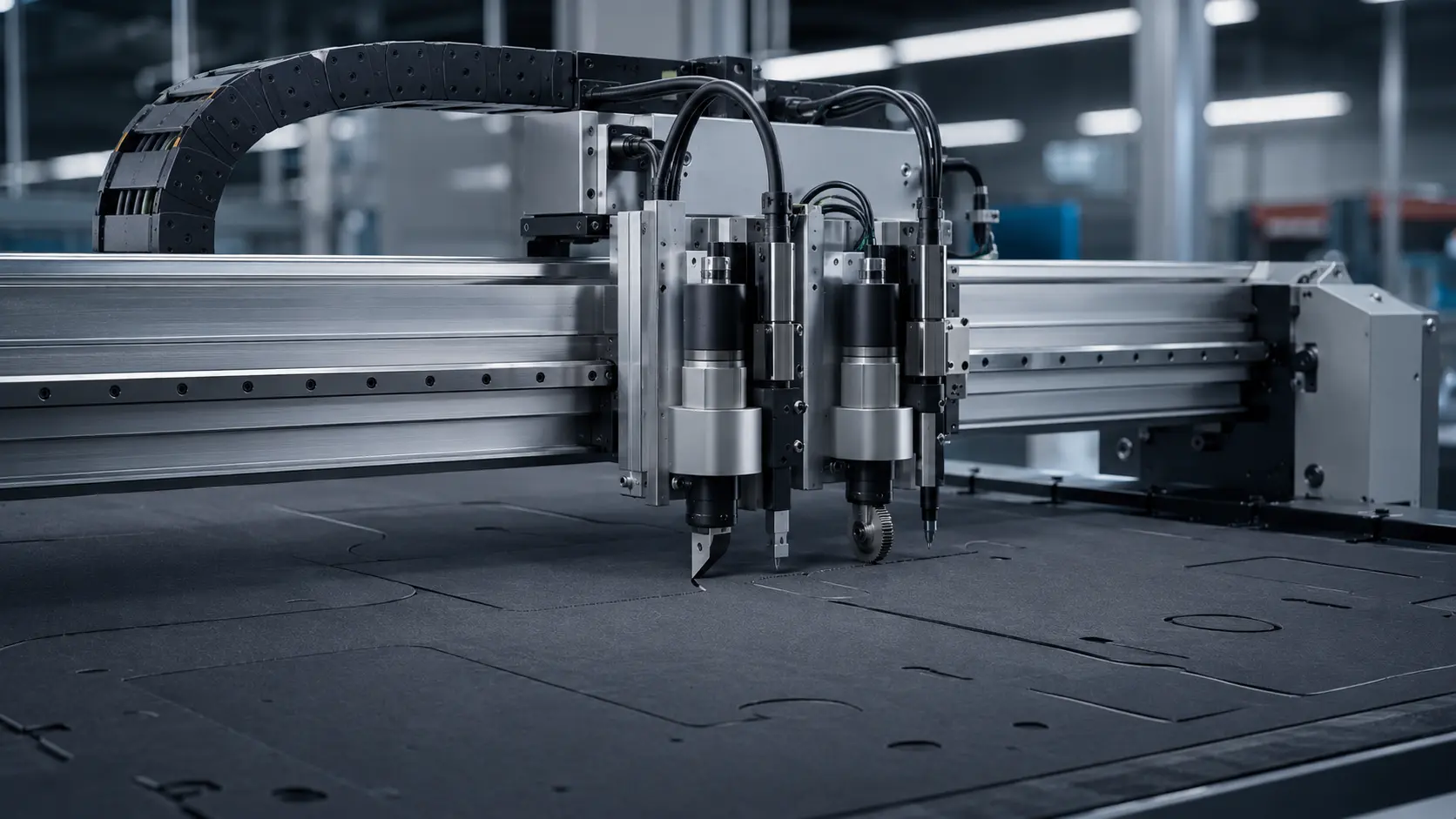

XYC Knife01
3-Axis Knife Cutter
Coordinate XY table motion with C-axis knife orientation for accurate 2D contour cutting.
- Tangential control
- DXF workflow
- Vacuum I/O

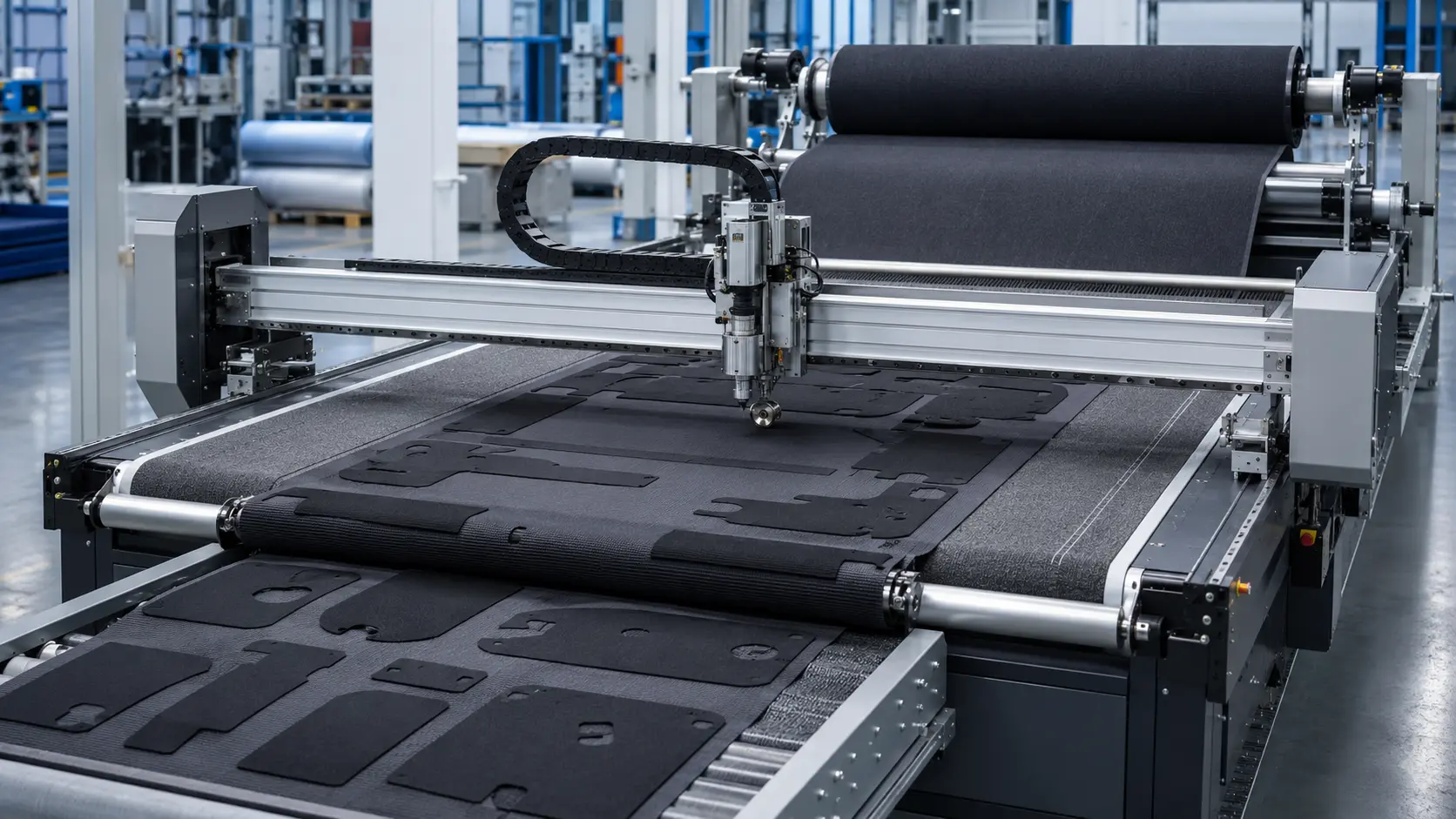

XYC Conveyor02
3-Axis Conveyor Cutter
Coordinate cutting motion, vacuum zones and conveyor indexing for repeatable roll-fed production.
- Conveyor indexing
- Zone control
- Nesting workflow

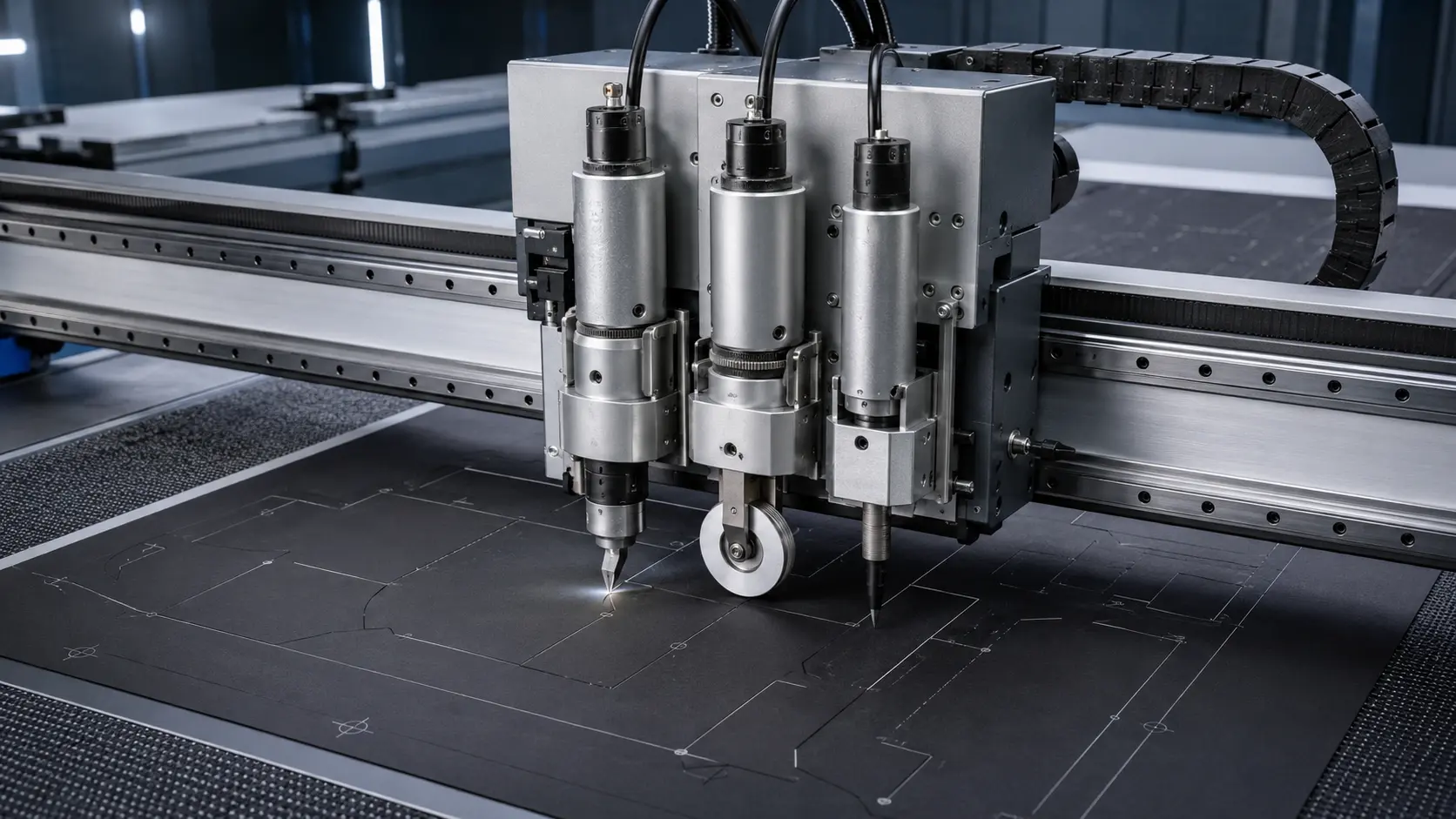

XYC Multi-Tool03
3-Axis Multi-Tool Cutter
Sequence compatible cutting and auxiliary tools, such as marking, creasing or perforating, within one engineered workflow.
- Tool offsets
- Head selection
- Process sequencing

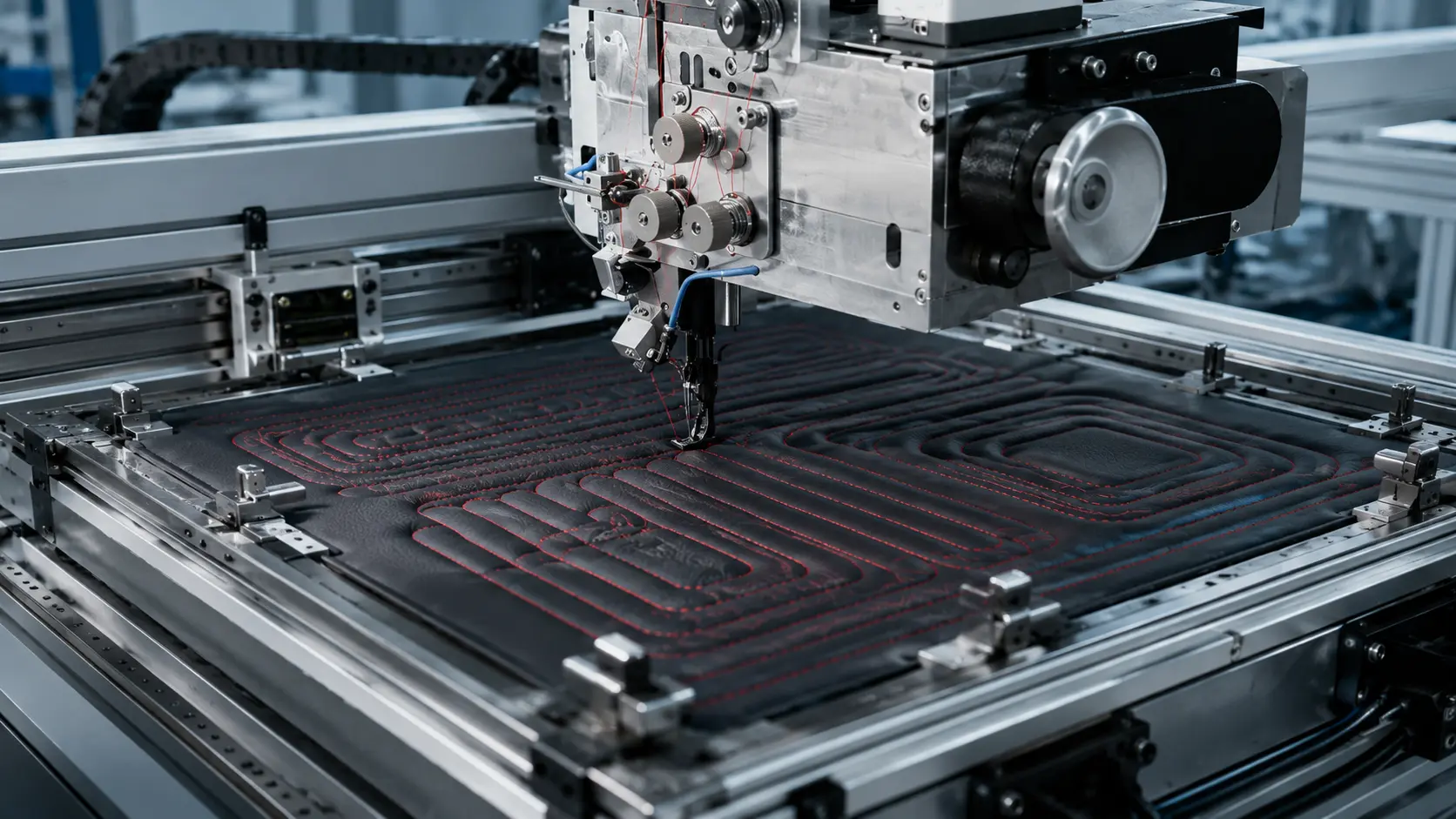

XY Sewing04
2-Axis Sewing Machine
Program repeatable two-axis stitch paths with fixture and sewing-head I/O configured around the machine.
- Path preview
- Stitch sequencing
- Fixture I/O

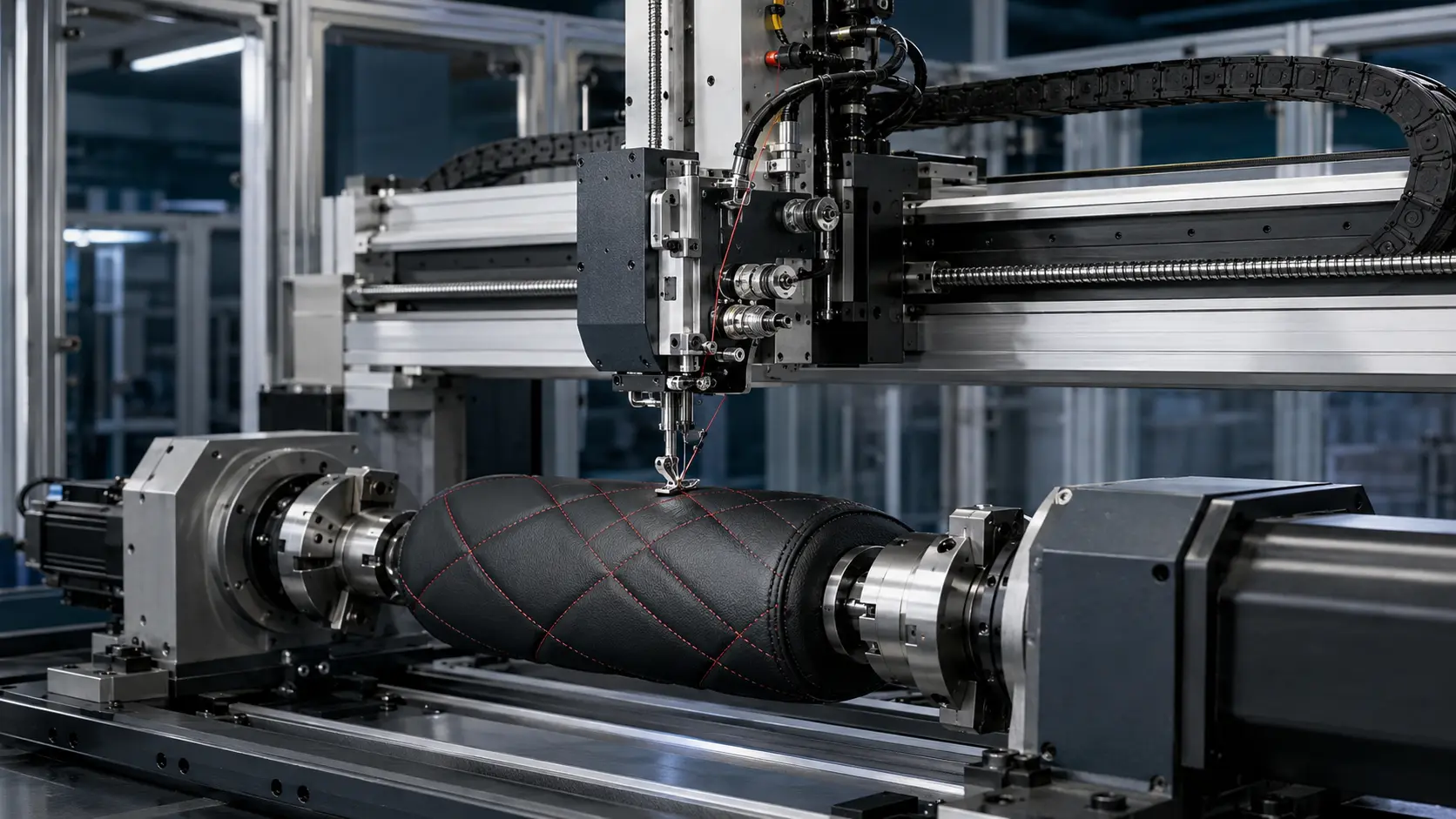

XYR / XYRS Sewing05
3/4-Axis Extended Sewing Control
Extended three- and four-axis sewing profiles coordinate XY motion with additional head or auxiliary axes.
- Additional-axis coordination
- Configured head actions
- Production recovery
Process / workflow03 Operator workflow
A controlled route from geometry to production
Keep geometry, machine states and operator decisions visible from job preparation through cutting or sewing.
Prepare the job
Load the approved geometry, confirm scale and orientation, and arrange the job for the available material or fixture.
Set the process
Select the configured cutting or sewing process and verify offsets, speeds and machine-specific settings.
Set the material
Secure and align the material using the vacuum, clamps, fixture or registration equipment fitted to the machine.
Verify and run
Preview or dry-run where appropriate, then execute with motion, process I/O and safety states visible to the operator.
04 System architecture
Software to motion.
Motion to process.
A complete control stack connects the operator interface to coordinated axes, machine services and the safety layer.
Application-specific HMI
Job preparation, process settings and production visibility.
- DXF import
- 2D preview
- Job recovery
Radonix platform
Coordinated axes, application logic and material-handling control.
- XYC / XY / XYR / XYRS
- Conveyor control
- Vision and I/O
Configured machine cell
Tooling, motion hardware, material handling and safety equipment.
- Cutting / sewing head
- Vacuum zones
- Guards and sensors
05 Engineering principles
Specify around the machine.
Final performance is established during engineering and commissioning. Radonix configures the controller around the real mechanics, drives, tooling, process equipment and safety system.
Controller and interface selection follow the real axes, drives, tooling, I/O and production requirements.
Operators can review the job, machine state and configured process controls from one interface.
Pause, resume and restart functions are configured to support safe recovery on the finished machine.
Vacuum, clamps, conveyors, sensors and optional registration can be integrated when the machine is equipped for them.
06 Technical FAQ
Questions before specification.
Need a machine-specific answer?Talk to a Radonix engineer →
01Which materials can a Radonix knife cutter process?
Typical applications include fabric, leather, vinyl, foam, gasket, cardboard and technical textiles. The correct knife and cutting parameters depend on thickness and material construction.
02What is the benefit of cold knife cutting?
Knife cutting does not create a heat-affected zone, helping avoid burnt or melted edges on compatible flexible materials.
03Can Radonix control a conveyor cutting table?
Yes. Conveyor indexing, vacuum zones and production sequencing can be integrated for continuous roll-material workflows.
04Does Radonix support automated sewing?
Yes. XY, XYR and XYRS control profiles can be configured for programmable sewing machines, subject to the machine mechanics and auxiliary equipment.
Next Machine specification
Make the control fit the machine.
Share the axis count, drive types, process equipment, I/O list and production goals. Radonix will help define the appropriate controller, interface and commissioning scope.
