One-line value prop: True 5/6-axis RTCP machining for molds, wood/stone carving, and composite trimming—with automatic tool change and probing.
Who uses it: Mold & pattern shops, furniture/stone ateliers, composite & boat builders, aerospace/automotive prototyping.
Works with: Gantry/bridge routers using X, Y, Z linear plus A/B/C rotary axes (3+2 positioning or full 5-axis/6-axis simultaneous).

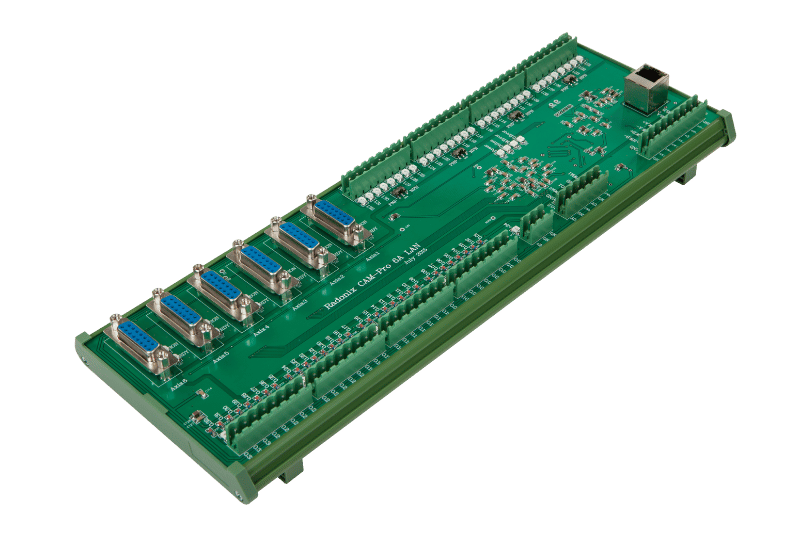

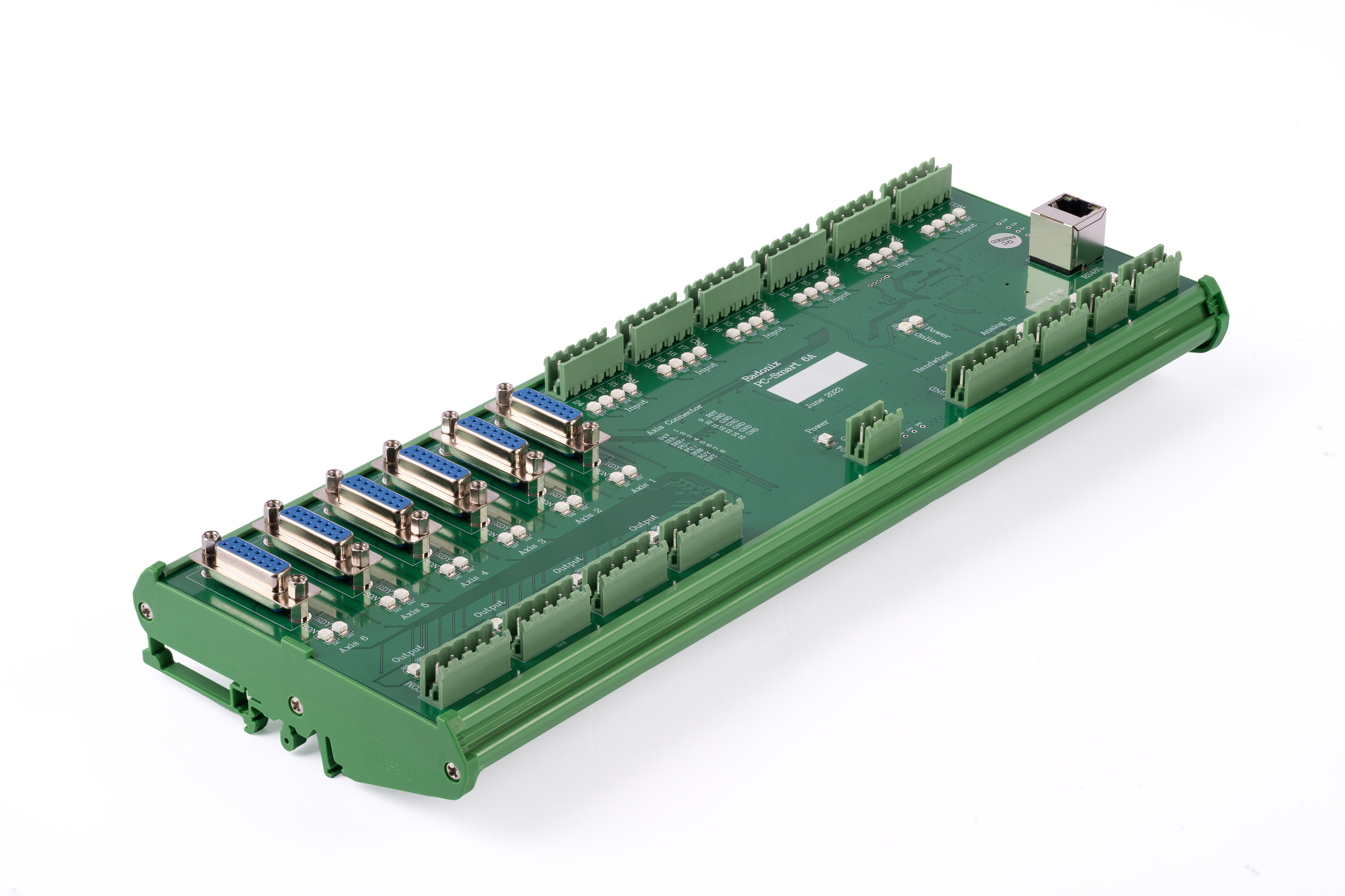

Compatible controllers: PC-SMART 6A 6 / PC-PRO LAN 6A
Supported files: Multi-axis G-code from common CAM posts (PowerMill, Fusion 360, Mastercam, etc.) and 2.5D DXF.
Important: Includes RTCP (Rotation Tool Center Point) so programs follow the tool tip regardless of head/table motion.
Axes: X, Y, Z + A/B/C rotary (head, table, trunnion, or nutating head layouts).
RTCP / Tool-Center Programming with kinematic transforms, singularity and limit handling.
3+2 indexed machining, 5-axis simultaneous, or full 6-axis where available.
Automatic homing, soft limits, Safe-Z park, programmable machine limits.
Spindle control (rpm, orient), coolant/mist/air, vacuum table, dust shoe, aux I/O.
High look-ahead planner with junction control for smooth freeform surfaces.
ATC: linear/carousel/rack; tool table (length/diameter/wear), broken-tool check.
Probing: tool Z-setter (and optional diameter) + workpiece probing (plane/edge/boss/3-point).
M-codes for vacuum zones, clamps, dust shoe, air-blast/mist/coolant, beacons, doors, E-stop chain.
Recovery: resume from last G-code line after stop/power loss with safe re-entry checks.
XYZ + A/B/C with RTCP, 3+2 & 5-axis/6-axis simultaneous
ATC with tool table & tool/work probing
Swarf/contour cutting, 5-axis drilling, edge-trim
Dry-run, single-block, restart from last line
3D preview with holder view & limit checks
| Area | Spec |
| Axes / Modes | X, Y, Z, A, B, C |
| File Formats | DXF, standard G-code |
| Compensation | Kerf/offset, corner smoothing, arc tolerance |
| Performance | Profile, pocket, drill/peck, ramp/helix, tabs/onion-skin, rest-machining |
| I/O | Guards/doors, vacuum OK, clamps/fixtures, E-stop |
| Work Offsets | Multiple origins for sheet/remainder reuse |
| Reports | Time, path length, tools used, pauses/alarms, notes |
Import G-code (or DXF for 2.5D), review the 3D preview and tool list.
Home axes, set work offset(s), probe tool length/diameter if applicable.
Choose machining mode (3+2 or 5-axis), verify A/B/C limits and RTCP on.
Run dry-run/single-block to confirm path, clamps, and clears.
Start production; ATC manages tool changes, spindle/coolant, and auxiliaries.
If interrupted, resume from last line; export run report for traceability.
Coordinate XYZ + up to three rotary axes (A/B/C) across wood, stone, milling, mold-making, and dental machines—up to 6 simultaneous axes.
Keeps the tool tip exactly on the programmed path during 5-axis rotations—no re-posting when you change head lengths or pivots.
Run spindles synchronously or sequentially with per-spindle ON/OFF, RPM, offsets, and tool numbers.
Works with linear, rotary/carousel, and jack magazines—full clamp/unclamp sequencing, interlocks, tool table, and safe recovery.
Touch-setter cycles capture tool length (and optional diameter) for accurate depths and wear compensation after each change.
Preview the job in true 3D with live A/B/C angles to verify reach, orientation, and motion before cutting.
Enforces a maximum Z penetration so the tool never cuts past the programmed floor—protects the table, fixtures, and laminated stacks.
Real-world clips of Radonix interfaces on production machines—setup, operation, quality tips, and quick troubleshooting.
These are the Radonix CNC controllers designed to work best with this interface. Choose the recommended controller.
Radonix hardware for XYZABC Router :
