One-line value prop: High-speed, accurate hole/slot punching from DXF or Metalix CAM files—with travel-optimized sequencing, safe clamp management, and optional auto tool-change.
Who uses it: Metal, aluminum, and molding industries (HVAC, perforated/decor panels, signage, appliance panels).
Works with: XY tables/gantries driving servo, hydraulic, or crank punch systems.
Compatible controllers: PC-SMART 4A / PC-SMART 3AS / PC-PRO LAN 4A
Supported files: DXF and Metalix® output files (NC/DXF)
XY positioning over clamped or vacuum-held sheets; homing & soft limits.
Punch head with vertical stroke (machine-side), triggered from I/O.
Configurable keep-out zones for clamps; origin presets for remnant reuse.
Live Absolute/Relative readout and Velocity (mm/s); feed override slider; Play/Pause/Stop with safe resume.
Outputs: Punch/Fire, Pump/Power, Holder/Tool-lock, beacons/alarms.
Inputs: Up/Down sensors, stroke-complete, pressure/air OK, door/guard, E-stop.
Tunable timing parameters (e.g., ClampDelay, HolderDelay, ToolLockDelay, RepositionGap, RepositionVelocity).
DXF-first or Metalix import: open a DXF/NC and see an immediate path grid preview.
Automatic feature handling for holes/slots/rectangles → generates a hit list and groups by size.
Hit Sequencer: shortest-path travel, double-hit/multi-pass rules for thicker stock, and nibbling (linear/arc) with step/overlap.
Automatic Repositioning: executes designs larger than the table—pauses at programmed gaps, prompts clamp move, resumes with alignment checks.
Built-in Simulation mode (punch off), X0/Y0 origin tools, and per-axis jog for quick set-up.
DXF and Metalix file compatibility
Travel-optimized hit sequencing; group by feature size
Nibbling (linear/arc) with user step & overlap
Auto workpiece repositioning for oversize parts
Safe clamp keep-outs; Pause/Resume; feed override
Full alarm stack, Up/Down sensors, job logging
| Area | Spec |
| Axes /Modes | XY punching (single or multi-tool) |
| Actuation | Servo, Hydraulic, or Crank systems |
| Files | DXF, Metalix® outputs (NC/DXF) |
| Tooling | Single tool; Auto Tool-Change (ATC) optional |
| Planning | Shortest-path sequencing; multi-pass/double-hit; nibbling |
| Repositioning | Automatic with programmable gap & velocity |
I/O | Pump/Power, Punch/Fire, Holder/Lock, beacons/alarms; Up/Down & stroke sensors |
Open DXF/Metalix file → preview grid appears.
Set origin and confirm clamp keep-outs.
Choose rules: dwell times, nibbling step/overlap, double-hit if needed.
Dry-run (punch off) to verify order and clamp clearances.
Run job; use feed override and safe Pause/Resume.
Save report (hits, time, alarms) for traceability.
XY Punch (Simple): single-tool workflow .

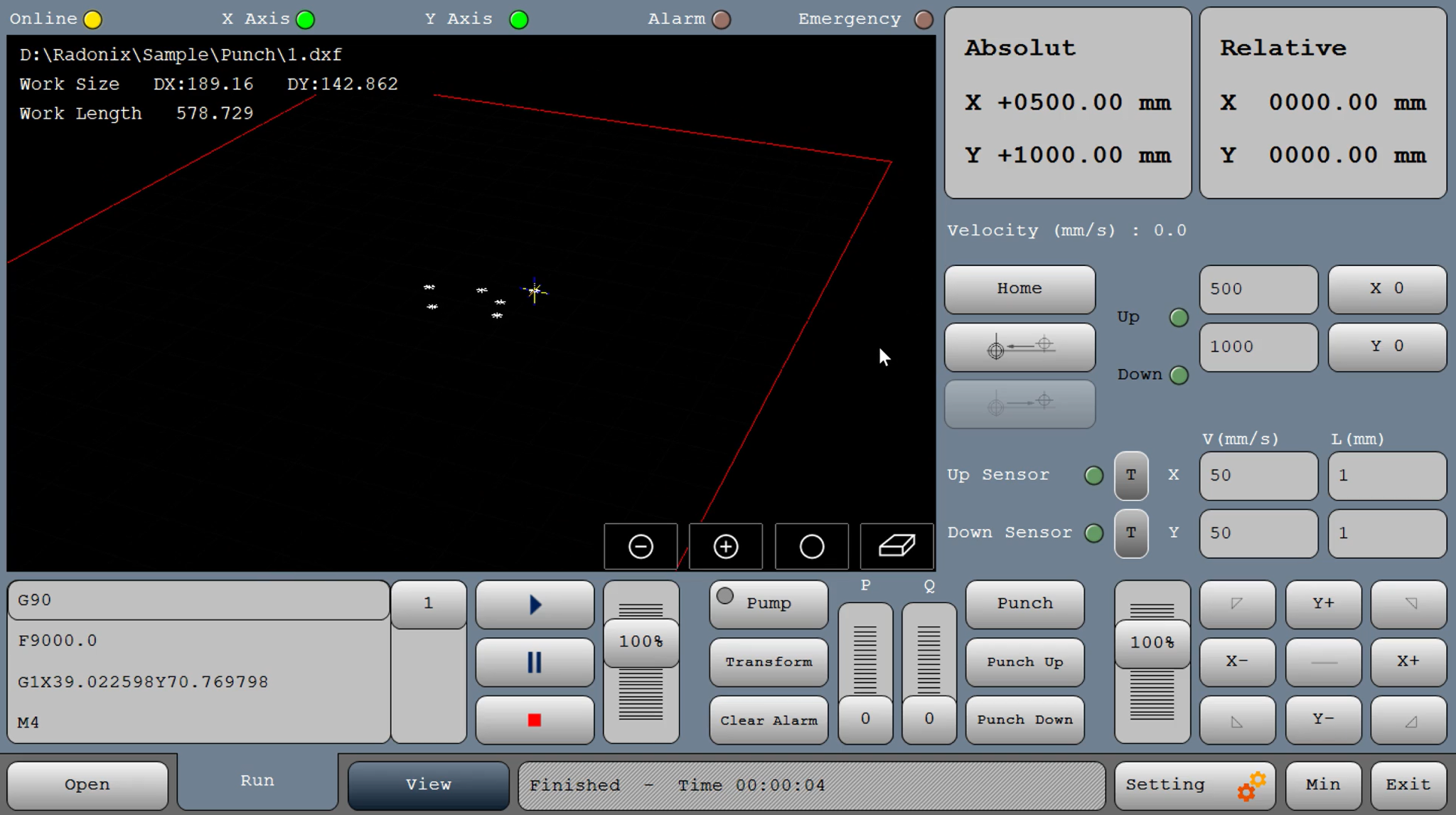

XY Punch (VS-Punch): streamlined UI with Pump, Punch Up/Down, Down Sensor indicators—ideal for basic hydraulic/servo presses.
XYCK Punch + TC: adds C/K axes for tool changer/holder control and automatic tool change (tree of T01…T06), plus timing controls for tool-lock/holder.
Seamlessly load and execute DXF files without the need for G-code conversion — streamlining your workflow and reducing setup time.
Select specific parts from complex drawings and customize cutting order with intuitive control over toolpath sequencing.
Scale, rotate, and mirror parts directly within the interface — with live toolpath previews to ensure precision.
Manually drag and drop parts onto your material sheet to accommodate irregular shapes, pre-cut stock, or remnant reuse.
Set up to three independent pause points — before the cut, during the cut, and after the cut — for manual checks or operational adjustments.
Execute toolpaths in reverse to minimize material warping or adjust final exit points based on design needs.
Perform a complete motion test without activating the torch. Ideal for verifying the toolpath before live cutting.
The interface drives any actuation type with configurable dwell and timing, plus pressure/air-OK and stroke-complete checks for safe, repeatable hits. Clamp/holder/tool-lock delays are tunable in milliseconds to match your machine.
Built-in ATC logic handles tool call, unlock/lock, holder lift, and position verification with a tool table (T01…T06) and per-tool offsets. Tools can be selected from DXF/Metalix programs or manually, with guided recovery after a stop.
